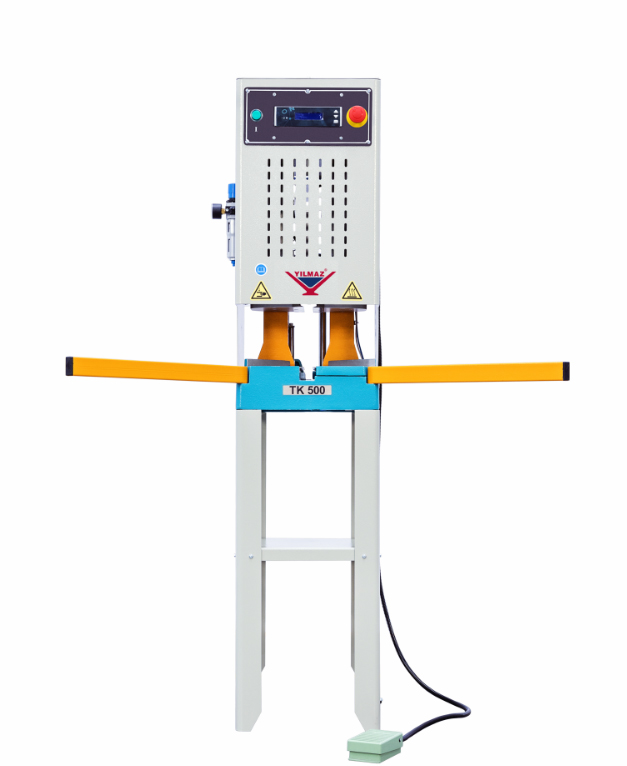

TK 500
Single Corner PVC Welding Machine
This machine is ideal for the single corner welding of PVC profiles at 90°. Adjustment of standard (2 mm) or seamless (0.2 mm) welding options manually
Optional Accessories
- Special welding molds
General Features
- Enable the welding operation at 90°
- Adjustment of standard (2 mm) or seamless (0.2 mm) welding options manually
- Welding possibility for the profiles at H:130 mm high
- All parameters such as melting and welding time
- welding pressure are set independently
- Automatically start and finish the welding cycle
- Adjusting the heat between 0-300°C by means of the electronic thermostat
- Easy and smooth welding operations for long profiles by means of rotating support arms
- Standard equipped with height adjustable profile support arms on both side
- Clamping the profiles separately via foot pedal
- Machine stand
TECHNICAL SPECIFICATIONS TABLE
1.5 Kw 50 Hz
230 V AC P N PE
20 Lt / dak Lt / min
6-8 bar
42x52x87 cm
90 kg
