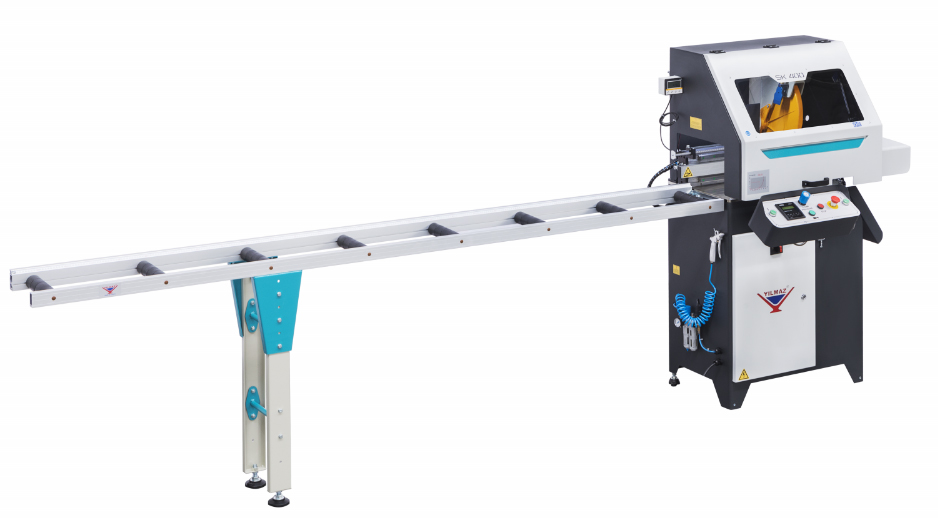

SK-400
Automatic Profile Slicing Machine
SK 400 is suitable for high volume, 90° cutting of PVC and aluminium profiles and solid bars for window manufacturing and industrial applications. The cutting capacity doubles by two steps of high-speed serial cutting mechanism (patented).
Standart Accessories
- 3 meter of roller conveyor
- Equipped with saw blade Ø 400 mm
- Spray saw blade lubrication system
- Air gun
- 4x horizontal clamps
- 1x vertical clamps
Optional Accessories
- Extending kit for 6 meter of infeed roller conveyor
- Additional saw blade with Ø 400 mm
- VCE 1570 Chip vacuum extractor
General Features
- Suitable for high-volume slicing of aluminum profiles for window manufacturing and industrial applications
- Precise measurement with mechanical gauge integrated with digital display
- Top-blowing unit ensures the table stays free of burr
- One two or three strokes are possible by means of selection switch
- Horizontal and vertical clamping of the workpiece during the sawing operation
- The machine shut down automatically after reaching the requested quantity
- Spray saw blade lubrication system
- 3 meter of profile roller conveyor
- Last remaining waste: 85 mm
- Standard equipped with downward motion saw blade
- Feeding distance per cycle: min. 5mm / max. 280mm (unlimited for the maximum cutting length

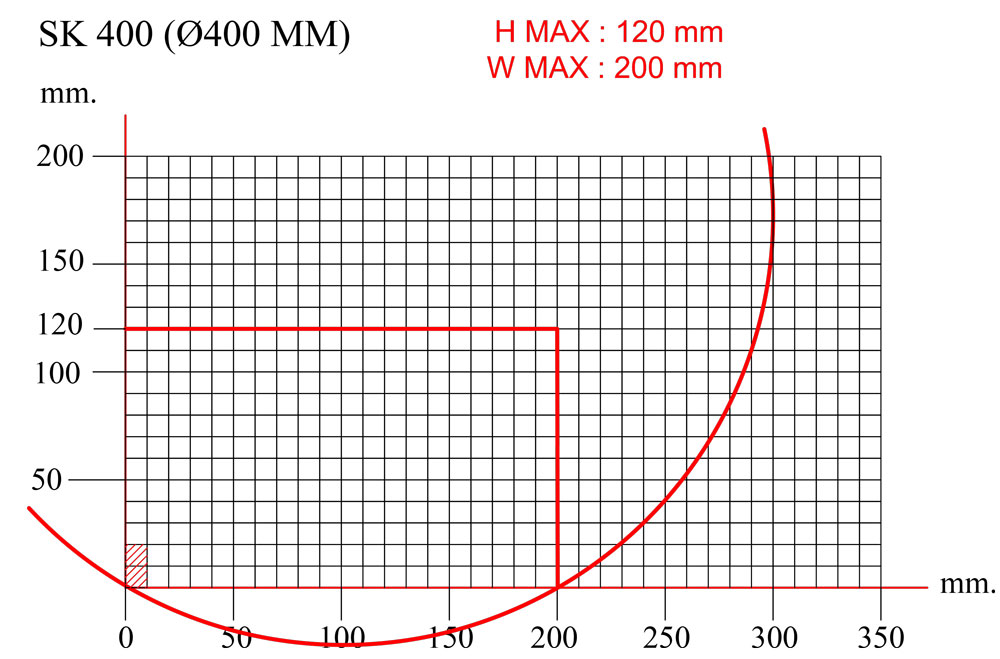

- Clamping capacity: 5
- Hmax: 120 / Wmin:5
- Wmax: 200mm
- The cutting capacity doubles by two steps of high-speed serial cutting mechanism (patented)
