DC-550PB
Double Head Mitre Saw Machines
DC 550 PB is full automatic sawing machines that is designed for the strait or angular cutting operations of large size of profiles made of PVC and aluminium materials by means of double head sawing units equipped with Ø 550 mm of saw blades.
Standart Accessories
- Equipped with saw blades 2 x Ø 550 mm
- Roller conveyor & 2 x pneumatic profile supports
- Spray saw blade lubrication system
- Barcode printer
- 4 x horizontal clamps
- 2 x vertical clamps
- Air gun
Optional Accessories
- Machine with the length of 5m and 6m
- Short cut system (DKN 60 with digital unit)
- VCE 1570 Chip vacuum extractor
- Removal conveyor belt
- DLG100-DLG200-DLG300 digital length gauge
- Arrow cut system for mullion profiles (DKN 80)
General Features
- Two-hand run safety operation

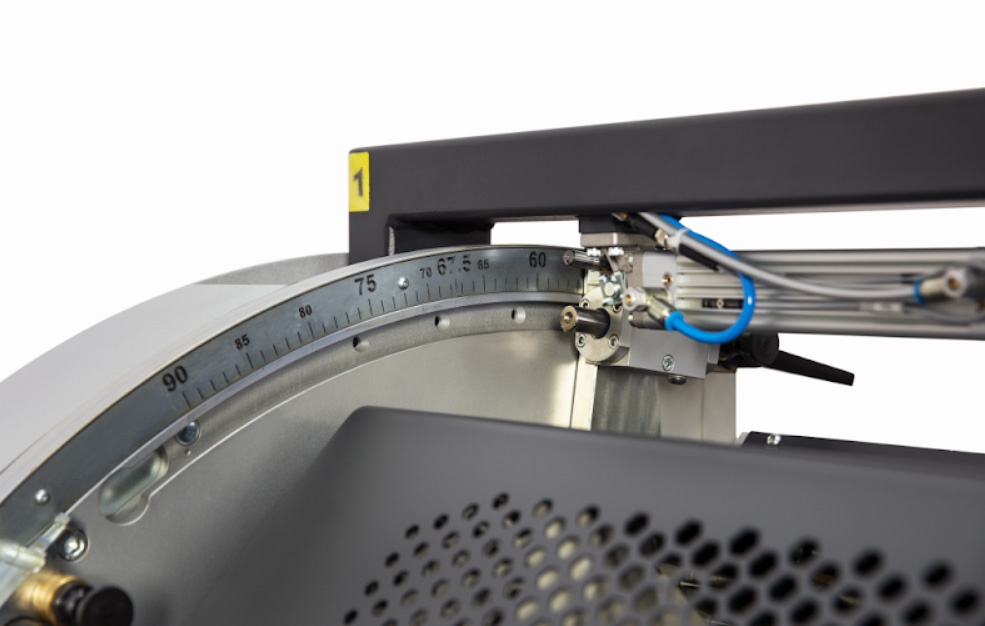

- Automatic positioning of the heads between 45° inwards and 22.5° outwards by the computer control
- Hydro-pneumatic saw feed
- Cutting accuracy +/- 0.2 mm
- 2 x pneumatic profile supports
- Automatic slicing feature at 90° and 45° inward
- Windows based industrial PC and 15’’ LCD touch screen colour monitor
- Facility to transfer the cutting list at ‘mdb’ and ‘csv’ formats via USB and network
- Remote connection via internet and providing technical support
- Barcode printer & image print
TECHNICAL SPECIFICATIONS TABLE
3 kw x 2 50/60Hz
400 V AC 3P N PE
3000 D/dak. RPM
D:550 mm d:30-32 mm
64 L/Min.
6-8 Bar
125 x 511 x 188 cm
1755 kg
