CRM-201S
Template Copy Router Machine with Triple Hole & Water Slot Drilling
It is used for the processing of slots for locks, drilling handles, triple, hinges, espagnolette holes and opening water drain slot on PVC and aluminium profiles CRM 201S Template copy router with triple holes and water slot drilling features.
Standart Accessories
- Ø 5mmx L: 80mm of router bit
- Air gun
- 2 x profile stops both left and right
- Spray tool lubrication system
- 2x horizontal clamps
- 2x vertical clamps
Optional Accessories
- Additional router bits
- Special copy templates
General Features
- Copy fitting operates manually and the figures on the template are machined at 1:1 ratio
- The aluminium profiles up to 3 mm of wall thickness can be machined with a strong spindle motor
- The cutting fluid controlled with a joystick is sprayed to the milling spot
- Slots in varied lengths and widths can be opened without using the copy milling template
- The length of the water drain slot is adjustable on the template
- Copy milling motor is directly controlled via joystick

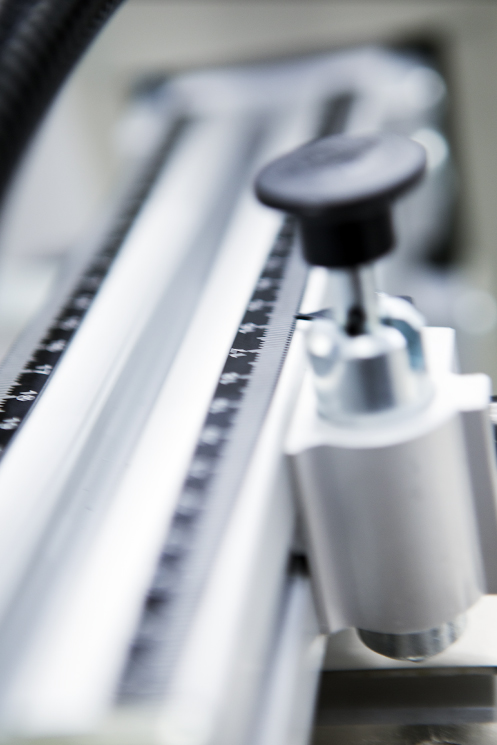

- Reference stops at 2 sides of the milling machine
- Standard equipped with inlet-outlet conveyor
- Ergonomic hand control unit
- On the horizontal axis there is triple hole drilling mechanism
- Pneumatically working water slot opening system
TECHNICAL SPECIFICATIONS TABLE
2.2KW
18000dev/dak RPM
8 Lt/dak. / 8Lt/min.
6~8 Bar
W= 64cm L= 80cm H= 149cm
150 kg
