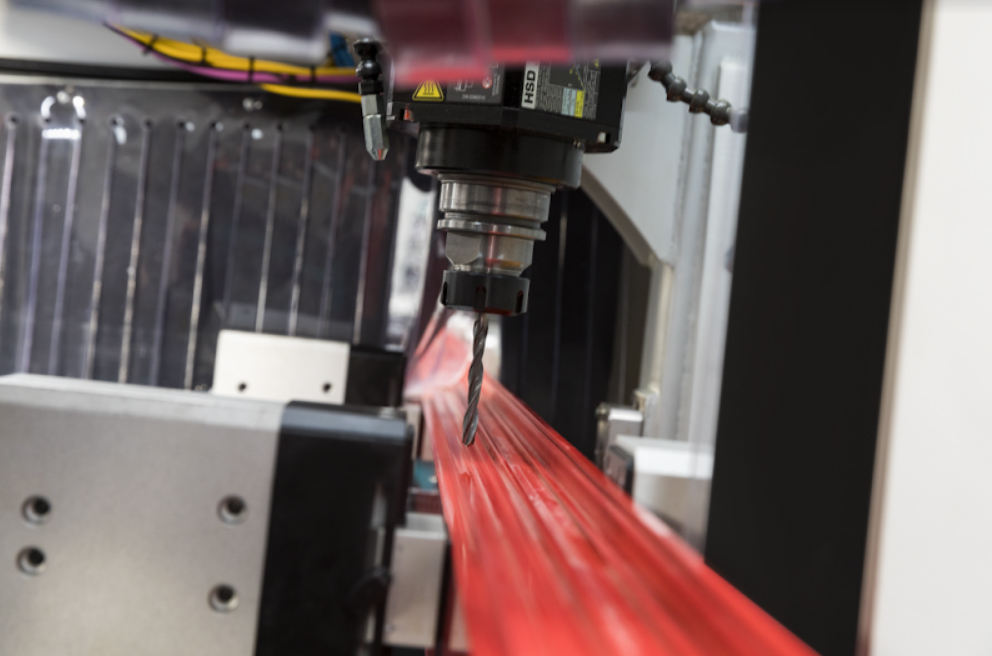

AIM 4420-7420

Aluminium Profile Machining Centers

AIM 4420-AIM 7420 are CNC controlled 4-axis machines designed specifically for machining all types of aluminium & PVC profiles, low carbon alloy and thin-walled steel profiles available on the market. With the 4th axis feature, it can also be machining on 3 surfaces of profiles.

Optional Accessories

Cutter tools
tool holders and collets set
CAD-EXTRACT software program for working on IGES files
Automatic tool length measurement device
Chip removal conveyor belt
Special saw blade kit
Additional options on demand

General Features

Designed for all kinds of drilling
grooving
notching
taping etc. on aluminum profiles
Uninterrupted machining property by means of the two stations mode to reduce the workpiece change time (AIM 7320)
Tapping feature from M5 to M8 with the compensating chuck (opt.)
B&R automation system enabling CNC movement on 3 axis
8 tool magazine unit
6 for cutter bits
1 for aggregate and 1 for saw blade
Tapping feature on the open holes from M4 to M8 thread for 1-4 mm wall thickness (opt.)
Special sound insulation cabinet around the machining center
PLC controlled misty coolant spray system with 3 pcs of outlets
Automatic clamps used for grabbing the work piece firmly
2 x pneumatic rests used for resetting the work piece in X direction
15’’ color touch screen
Fast programming using 8 preset macros
Program import via USB flash memory stick
Technical support capability via remote connection by computer
Standard ISO ‘G’ code programming language
Automatic cartridge lubrication system
Multi-language support
Operator safety barrier
LED lighting in the cabinet
