ACK 550
Up-Cutting Saw Machine
ACK 550 is designed for the strait or angular cutting operations of the large size of profiles made of PVC and aluminum materials by means of Ø 550 mm of saw blade.
Standart Accessories
- Equipped with saw blade Ø 550 mm
- Spray saw blade lubrication system
- MKN 301 roller conveyor (3 m)

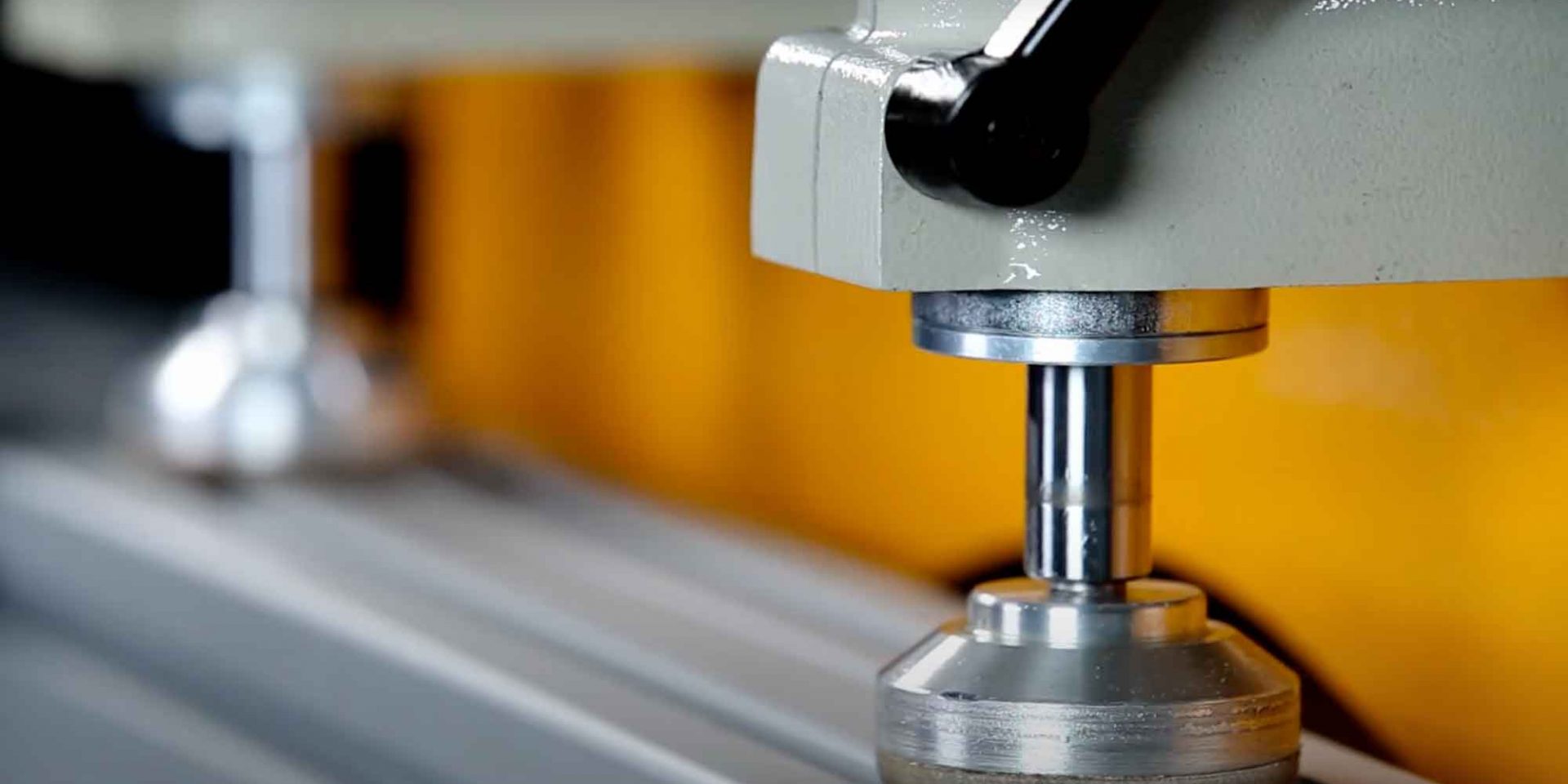

- 2 x vertical and 1 x horizontal clamps
- Air gun
Optional Accessories
- Laser marker set to indicate the cutting line
- Additional saw blade Ø 550 mm
- VCE 1570 Chip vacuum extractor
- DKN 302-452-602 end-stops
- SKN 300-450-600 end-stops
- 1 x horizontal clamp
General Features
- Two-hand safety operation
- Location points at 75°
- 60°
- 45°
- 30°
- 22.5°
- 15°
- 0° both left and right
- Pivoting range from -75° left to +75° right infinitely adjustable
- Hydro-pneumatic saw feed
- Adjustable saw blade feeding speed
- Interior LED lighting
- Pneumatically opening safety guard
- Safety locking switches on top guard and front doors
- Double acting clamps for operator safety
TECHNICAL SPECIFICATIONS TABLE
4kW 50~60 Hz
400V 3P
2400 D/Dak. RPM
D: 550 mm d:30 mm
160 Lt/dak.
6-8 BAR
106x131x156 cm
419 kg
